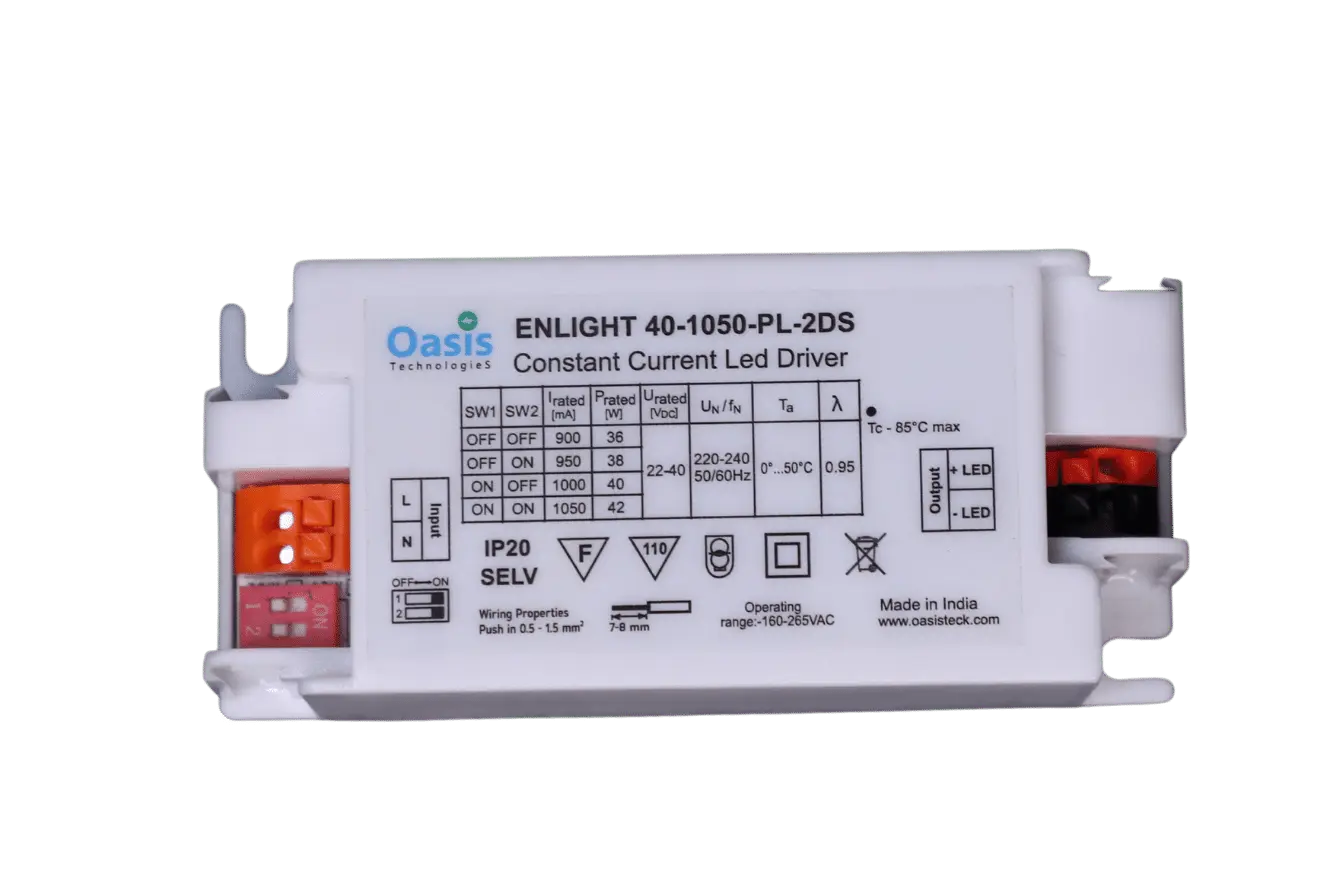

PRODUCT DESCRIPTION
- Constant Current LED Driver
- Indoor Application
- Non Dimmable
- OOutput Current 900-1050mA, 22-40VDC
- Efficiency : ≥85%
TECHNICAL SPECIFICATIONS
- Input Voltage : 220 – 240VAC
- Frequency : 50-60Hz
- Power Factor : >0.95
- Current Ripple : <30%
- ATHD : <10%
ENVIRONMENT & PROTECTION
- Input Overvoltage Protection
- Overload Protection
- Open Circuit Protection
- Short Circuit Protection
- 4 KV Surge Protection
- 440VAC Protection upto 4 Hrs
- Galvanic Isolation (Input to Output) : 1.5KV
CONSTRUCTION
- IP Grade : IP20
- Insulation Class : Class II
- Connection : Connector 2pole 45° push-in with release key
- Dimensions : 97x43x30mm
- Weight : 131 Gms
